SSX contacts technical data

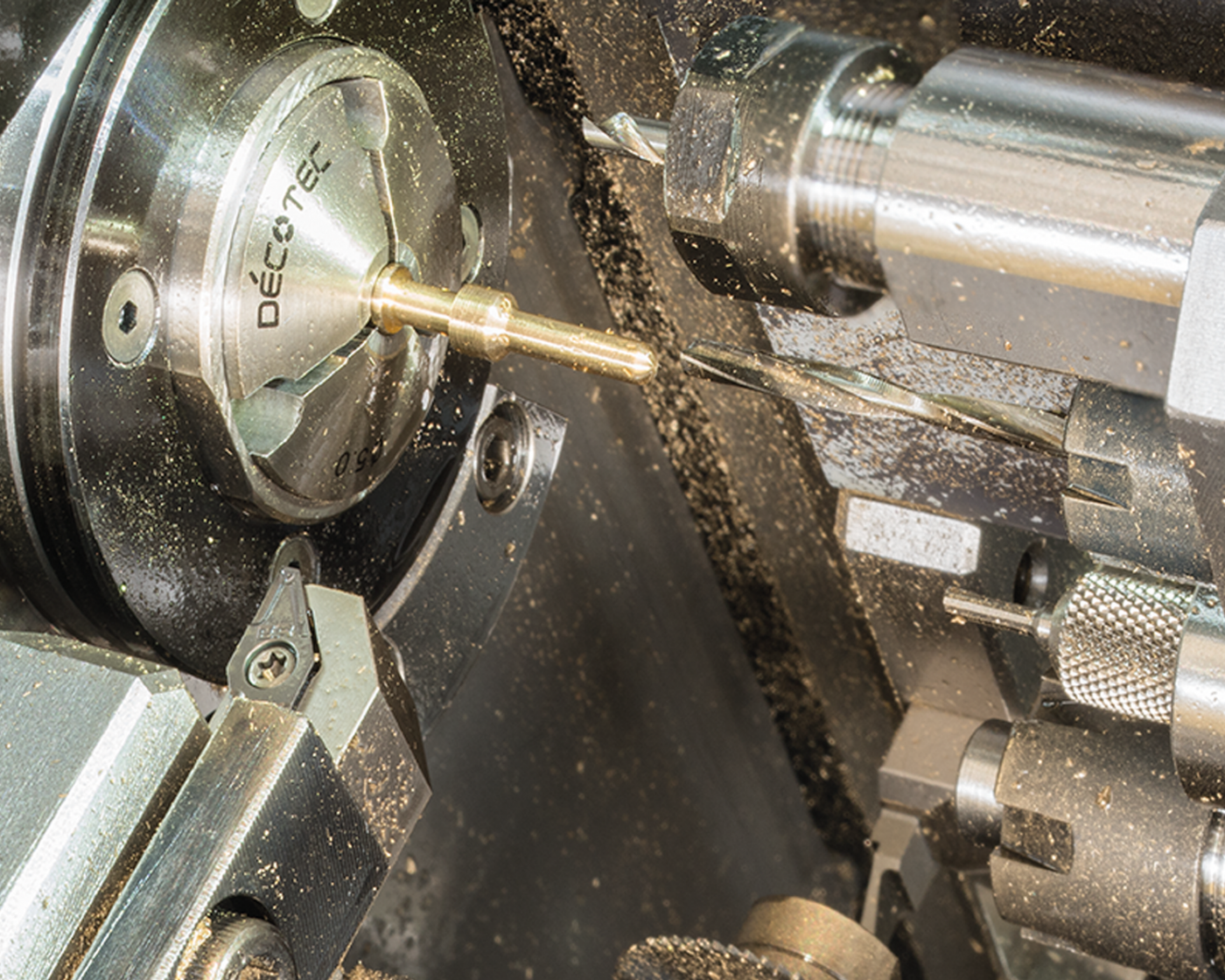

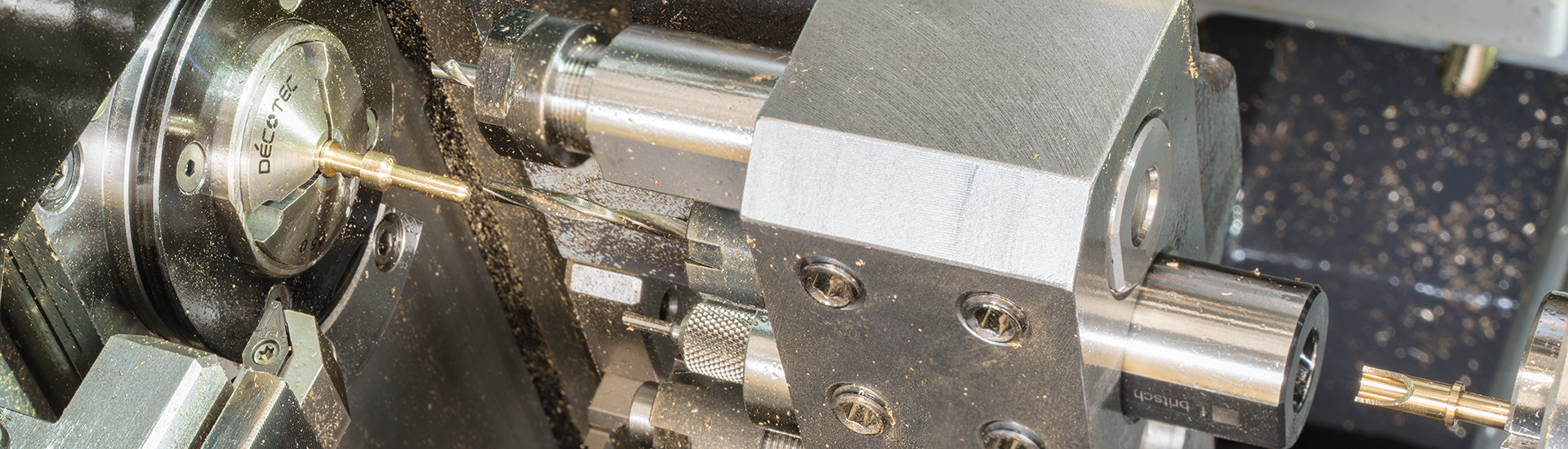

High conductive alloy machined contacts

Male and female
Solder or crimp
Gold or silver plated

High conductive alloy machined contacts

Male and female
Solder or crimp
Gold or silver plated


  • A benchmark set on mechanical perfection

    A benchmark set on
    mechanical perfection

    The new design of the SSX female contacts features a rounded shape of the contact entry ports and allows smooth contact insertion inside the insulating insert for seamless mating, with no damages on the pin cavities and positive contact placement and retention.

    A benchmark set on mechanical perfection
  • Armored female contacts

    Armored female contacts

    Armored female contacts

    Non-deformable. Increased number of mating cycles

    Nondeformable.
    Increased number of mating cycles


    An innovation on the SSX series

    The Syntax® armored contacts are available on request on all female versions (inline and panel) Syntax® SSX 19 pin and 16 pin  connectors . The armored contacts are provided with a protective jacket to improve contact quality on SSX connector. The usage of armored contacts results in a series of mechanical and electrical advantages. Thanks to their special design, the contacts are self-centered, ensuring seamless connection, increased number of mating cycles, improved electrical conductivity and lower operating temperature.

    Patented by Syntax®

  • Rounded edge female contacts

    Rounded edge female contacts

    Rounded edge female contacts

    Superfast contact insertion

    Superfast contact insertion


    Built to be consistently reliable.
    Our contacts are designed and tested to ensure consistent insertion and extraction force values over at least 500 mating and unmating cycles. This ensures a stable quality of connection over time, resulting in improved reliability and overall longer life span for the connector.

    Faster and safer contact insertion
    The rounded edge female contacts are supplied as a standard on all SSX female connectors. This proprietary Syntax® design eliminates the need to use lubricants or guide pins when inserting the contacts, greatly reducing assembling time.

  • Rounded female size 11 contacts

    Rounded female size 11 contacts

    Gold-Silver | Solder-Crimp

    Gold-Silver | Solder-Crimp

  • Gold female

    Gold female

    Gold female

    Crimp

    Crimp

    for 2.5 mm2

  • Silver female

    Silver female

    Silver female

    Crimp

    Crimp

    for 2.5 mm2

  • Gold female

    Gold female

    Gold female

    Crimp

    Crimp

    for 4.0 mm2

  • Silver female

    Silver female

    Silver female

    Crimp

    Crimp

    for 4.0 mm2

  • Gold female

    Gold female

    Gold female

    Solder

    Solder

  • Silver female

    Silver female

    Silver female

    Solder

    Solder

  • Armored female size 11 contacts

    Armored female size 11 contacts

    Gold-Silver | Solder-Crimp

    Gold-Silver | Solder-Crimp

  • Gold female

    Gold female

    Gold female

    Crimp

    Crimp

    for 2.5 mm2

  • Silver female

    Silver female

    Silver female

    Crimp

    Crimp

    for 2.5 mm2

  • Gold female

    Gold female

    Gold female

    Crimp

    Crimp

    for 4.0 mm2

  • Silver female

    Silver female

    Silver female

    Crimp

    Crimp

    for 4.0 mm2

  • Gold female

    Gold female

    Gold female

    Solder

    Solder

  • Silver female

    Silver female

    Silver female

    Solder

    Solder

  • Male size 11 contacts

    Male size 11 contacts

    Gold-Silver | Solder-Crimp

    Gold-Silver | Solder-Crimp

  • Gold male

    Gold male

    Gold male

    Crimp

    Crimp

    for 2.5 mm2

  • Silver male

    Silver male

    Silver male

    Crimp

    Crimp

    for 2.5 mm2

  • Gold male

    Gold male

    Gold male

    Crimp

    Crimp

    for 4.0 mm2

  • Silver male

    Silver male

    Silver male

    Crimp

    Crimp

    for 4.0 mm2

  • Gold male

    Gold male

    Gold male

    Solder

    Solder

  • Silver male

    Silver male

    Silver male

    Solder

    Solder

  • Technical data

    Technical data

    Technical data

    Voltage rating AC700 V
    Voltage rating DC500 V
    Max current41 Amps
    Rated current23 Amps
    Potential drop63 mV
    Dieletric strength Test voltage2000 Vac RMS
    Min. Flashover2800 Vac RMS

  • Advanced earth contacts

    Advanced earth contacts

    All SSX connectors are equipped with the 7 central contacts in an advanced position for “first make last break” ground contact.

    Advanced earth contacts
  • Common ground kit

    Common ground kit

    A kit for common ground, made up of a central disc and an outer ring, can be fitted on the earth contacts to create common grounding of the 6 circuits’ earths (optional). The common ground kit is available in silver or gold plated versions.

    Common ground kit
