S2W box
Syntax® 2-Way
with Syntax® SSX 19 pin connectors
S2W box
Syntax® 2-Way
with Syntax® SSX 19 pin connectors
Silver-plated or gold-plated contacts
-
Easy multiplying?
Here it is !Easy multiplying?
Here it is !
-
S2W with 1 male | 2 female Syntax® SSX 19pin connectors. The S2W model with 19pin connectors is available with silver plated or gold plated contacts. Standard and reverse versions are available (standard version in the photos).
The reverse version differs from the standard only for the position where the input connector is (on the reverse version, the input is inline with one of the outputs). -
S2W Silver plated contacts
S2W Silver plated contacts
1 male SSX / 2 female SSX
1 male SSX / 2 female SSX
Silver - plated contacts p/n S2WSXCS000S 1 IN 2 x OUT Standard p/n S2WSXCS000R 1 IN 2 x OUT Reverse
-
S2W Gold plated contacts
S2W Gold plated contacts
1 male SSX / 2 female SSX
1 male SSX / 2 female SSX
Gold - plated contacts p/n S2WSXCG000S 1 IN 2 x OUT Standard p/n S2WSXCG000R 1 IN 2 x OUT Reverse
-
NOTES:
- for the version with safety lacing add -L at the end of the p/n;
- IP67 protection cap available on request -
Beautiful on the outside but even more on the inside
Beautiful on the outside but even more on the inside
-
-
The true value of things
is in the detailsThe true value of things
is in the detailsAnti-rotation shell and insert design
Anti-rotation shell and insert design
-
The anti-rotation inserts are available in different colors.
For custom color options, please contact our sales department. -
-
We cannot trust anyone else,
we design and machine our contacts entirely in houseWe cannot trust anyone else,

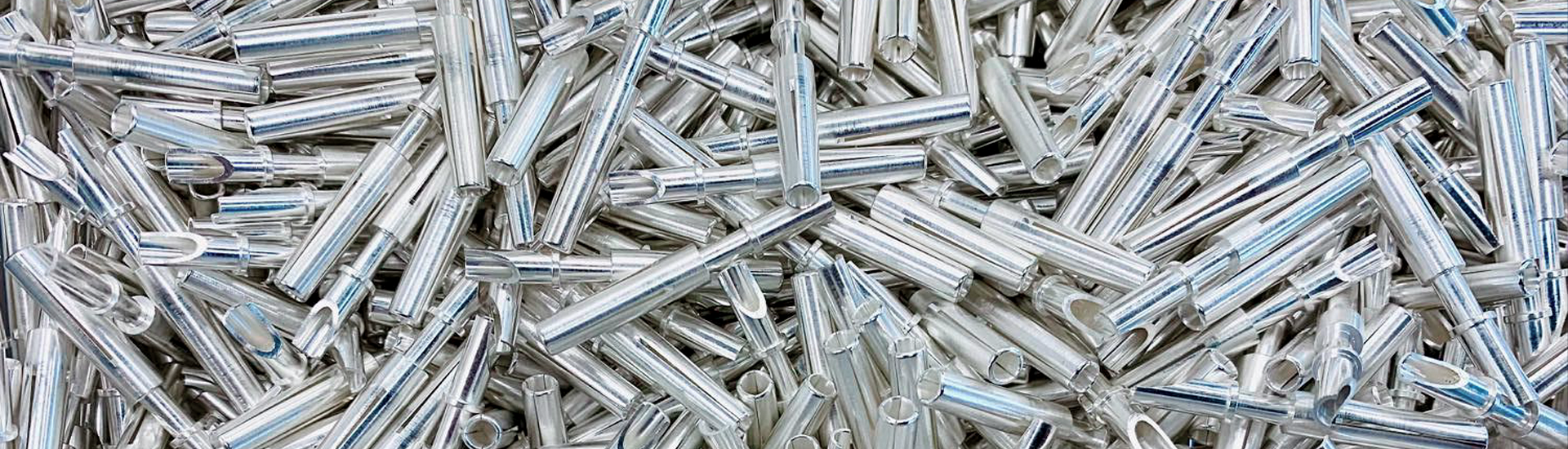

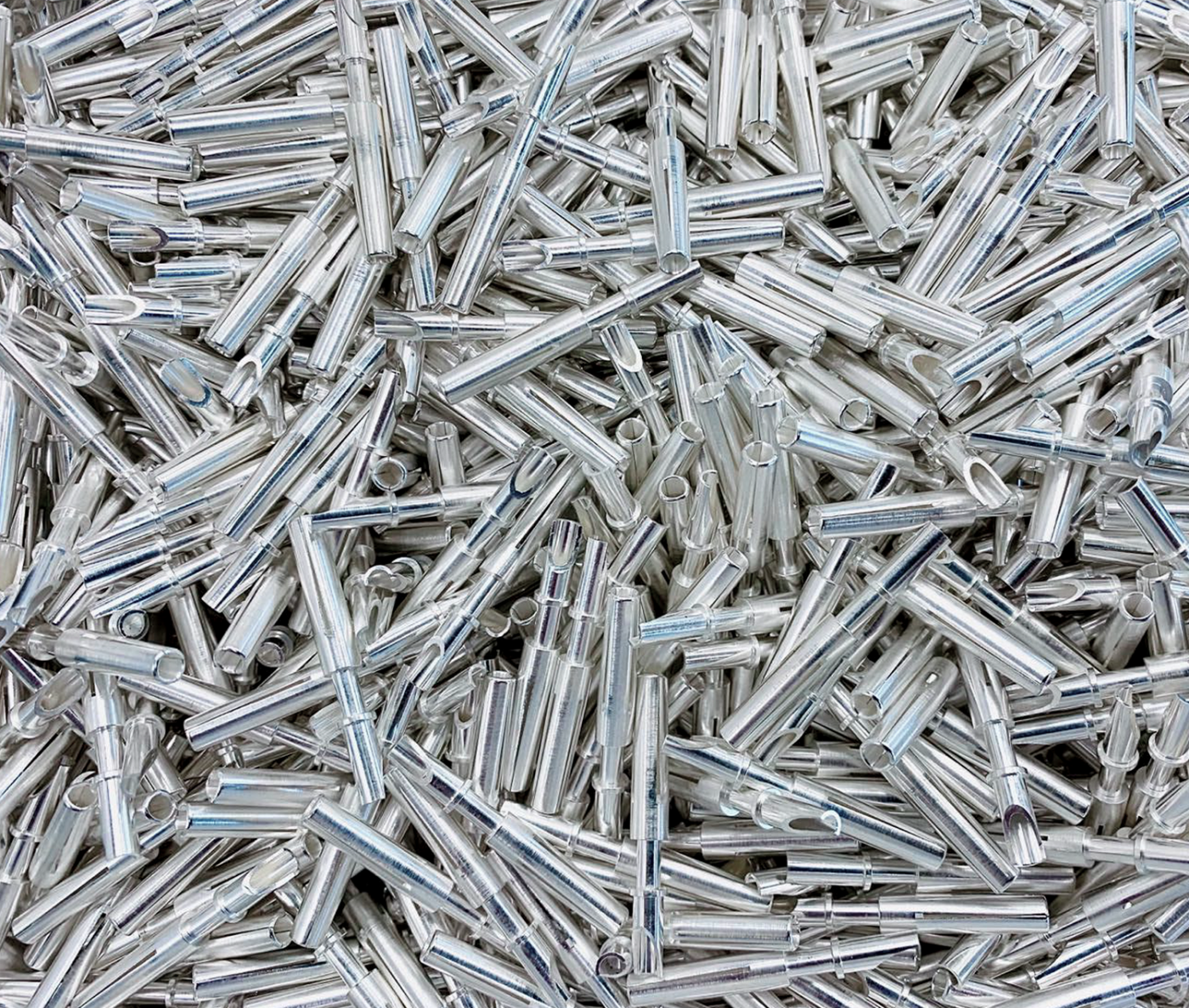

we design and machine our contacts entirely in houseSize 11 contacts
Rated current 23amp, max current 41amp.
The heart of the system.Size 11 contacts
Rated current 23amp, max current 41amp.
The heart of the system. -
-
It's not a matter of vanity,
each design has its purposeIt's not a matter of vanity,
each design has its purposeOur locking rings
Classic or finger-grip designOur locking rings
Classic or finger-grip design -
IP67 protective caps
IP67 protective caps
Waterproof your connectors
Waterproof your connectors
Safety is improved as contacts are protected against dust and water, even when the connectors are not mated.
-
-
Need a cable for your SSX connector?
Need a cable for your SSX connector?
Syntax® professional energy cables are flexible and easy to handle. Suitable for industrial application, field equipment, emergency lighting for public areas, audio and video technology. The best choice when winding operations are intensive.
