Socapex comatible connector - break-in break-out grommets

SSX Multiway

With 4, 6 or 8 hole rubber grommets for IP67 cable splitters

SSX Multiway

With 4, 6 or 8 hole rubber grommets for IP67 cable splitters

The Syntax® proprietary multiway rubber grommets are directly fitted in the cable gland and guarantee optimal cable retention and IP67 watertight seal for outdoor use.

  • Optimize your connections

    Optimize your connections

    Syntax® SSX Multiway connectors are alternative versions of the SSX Soca compatible standard inline connectors, designed for quick and easy managing of break-out or break-in applications. The Syntax® proprietary 4, 6 or 8 way rubber grommets, fitted in the cable gland, guarantee optimal cable retention and IP67 watertight seal for outdoor use.

  • Syntax SSX grommet exploded view

    1. Anti-rotation insert | 2. Safety insulating sleeve | 3. Anti-twisting grub screw | 4. Wide backshell for easier wiring | 5. Double backshell tightening system | 6. 6-way rubber grommet | 7. M50 cable gland | 8. Syntax® Mainflex cable

  • The M50 6-way and 8-way grommets
    feature a threaded nut.

  • A special removal tool is threaded
    onto the nut

  • The grommet is easily removed
    for inspection and maintenance

  • The true value of things   is in the details

    The true value of things
    is in the details

    The true value of things
    is in the details

    Anti-rotation shell and insert design

    Anti-rotation shell and insert design

  • The anti-rotation inserts are available in different colors.
    For custom color options, please contact our sales department.

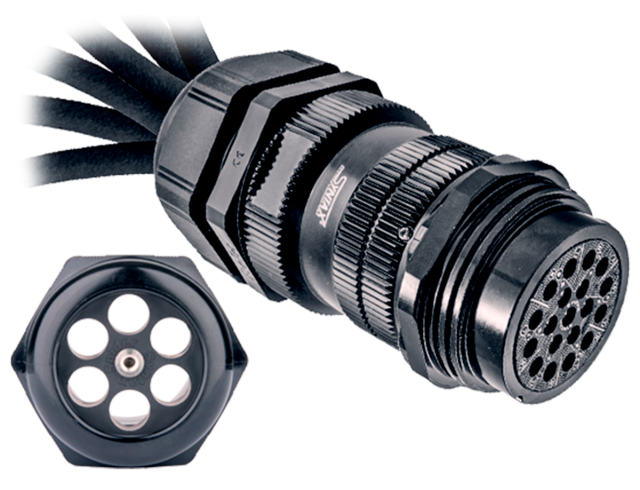

  • Syntax SSX 6 way grommet Socapex 19 pin

    6 - way

    6 - way

    for SSX 19pin

    for SSX 19pin

    SSX multipin connector equipped with a IP67 M50 gland with two different 6-way grommets: one to be used with 6 times 3x2.5mm² cables and one with 6 times 3x1.5mm².

    Typical applications:
    6 single phase  230V max. 3500W appliances (field equipment, LED screens).

    Recommended cables:

    Syntax 7ZF0325 - 3x2.5mm²

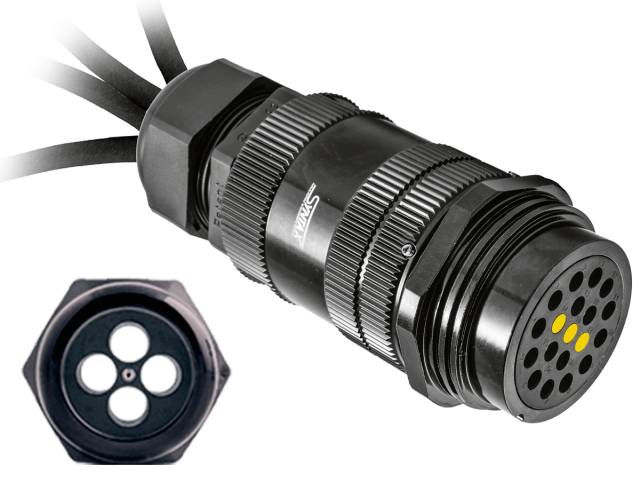

  • Syntax SSX 4 way grommet Socapex 16 pin

    4 - way

    4 - way

    for SSX 16pin

    for SSX 16pin

    SSX multipin connector equipped with 4-way IP67 M40 gland to be used with 4 times 4x2.5mm² or 4x4mm² cables.

    Typical applications:
     4 direct voltage hoists (entertainment), 4 power loudspeakers (entertainment), 4 pumps or 3-phase motors 400V max 8500W each (industrial).

    Recommended cables:

    Syntax 7ZF0425M - 4x2.5mm²


    Syntax 7Z4SX25 - 4x2.5mm²


    Syntax 7Z4SX40 - 4x4mm²

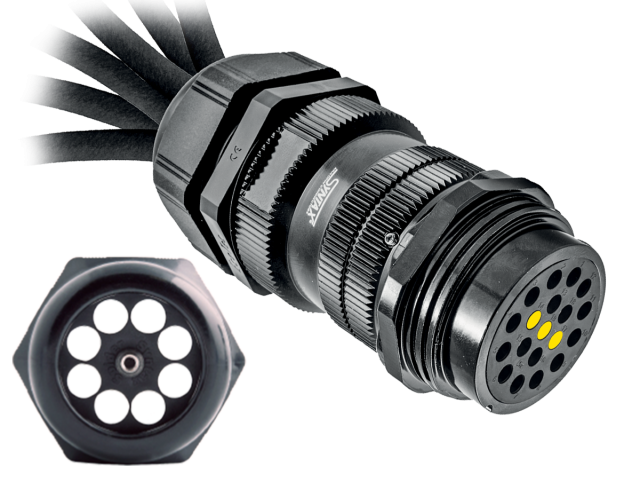

  • Syntax SSX 8 way grommet Socapex 16 pin

    8 - way

    8 - way

    for SSX 16pin

    for SSX 16pin

    SSX multipin connector equipped with a IP67 M50 gland with 8-way grommet to be used with 8 times 2x2.5mm²cables.

    Typical applications:
    8 double insulated light circuits (lighting), 8 power loudspeakers (entertainment).

    Recommended cables:

    Syntax 7ZF0225 - 2x2.5mm²


    Syntax 7Z2SX25 - 2x2.5mm²

  • 6 - way Basic grommet

    6 - way Basic grommet

    6 - way Basic grommet

    for SSX 19pin

    for SSX 19pin

    SSX multipin connector equipped with a IP54 M40 gland with no individual holes, all cables are inserted together. Compatible with two different cable types: 6 times 3x2.5mm² and 6 times 3x1.5mm².

    Typical applications:
    6 single phase  230V max. 3500W appliances (field equipment, LED screens).

    Recommended cables:

    Syntax 7ZF0325 - 3x2.5mm²

  • SSX 16 pin

    SSX 16 pin

    With the 4 - way and the 8 - way grommet

    With the 4 - way and the 8 - way grommet

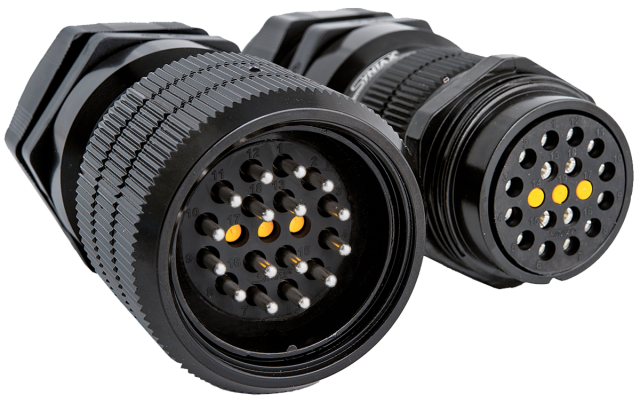

  • Syntax SSX 16 pin Soca compatible

    Led lights | Motor | Speaker

    Led lights | Motor | Speaker

    SSX 16 pin

    SSX 16 pin

    The SSX 16 pin connector is used in LED Lights, Speaker and Motor applications. It is supplied with 16 contacts and 3 anti-dust blind pins. As a standard on this version, pin 1 to 19 numbering is embossed on the insert.

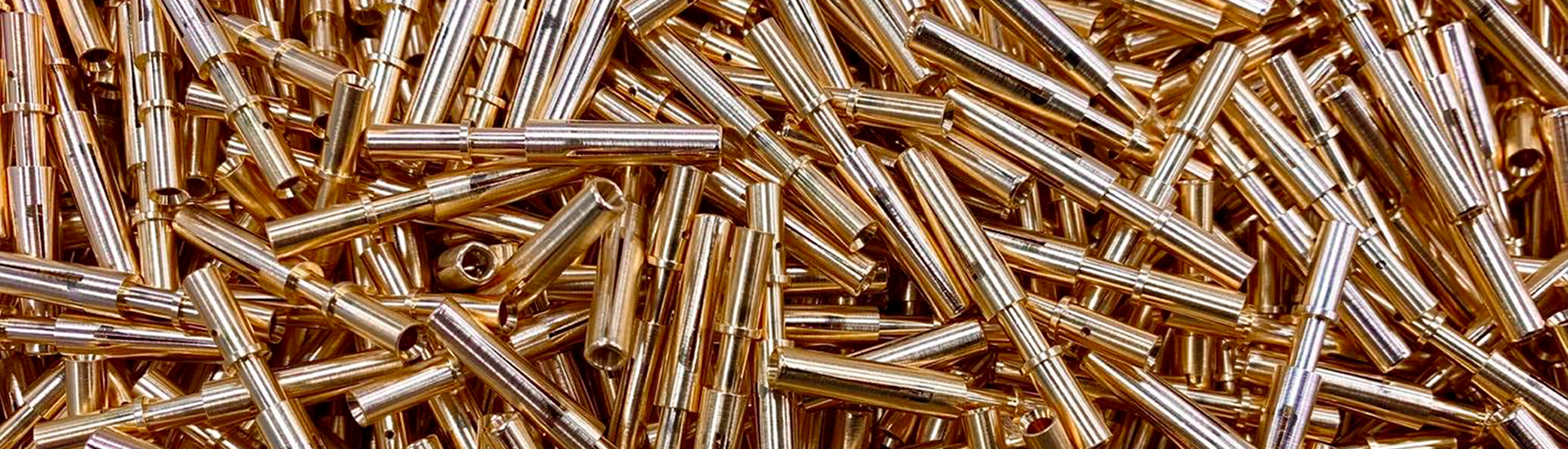

  • We cannot trust anyone else,   we design and machine our contacts entirely in house

    We cannot trust anyone else,
    we design and machine our contacts entirely in house

    We cannot trust anyone else,
    we design and machine our contacts entirely in house

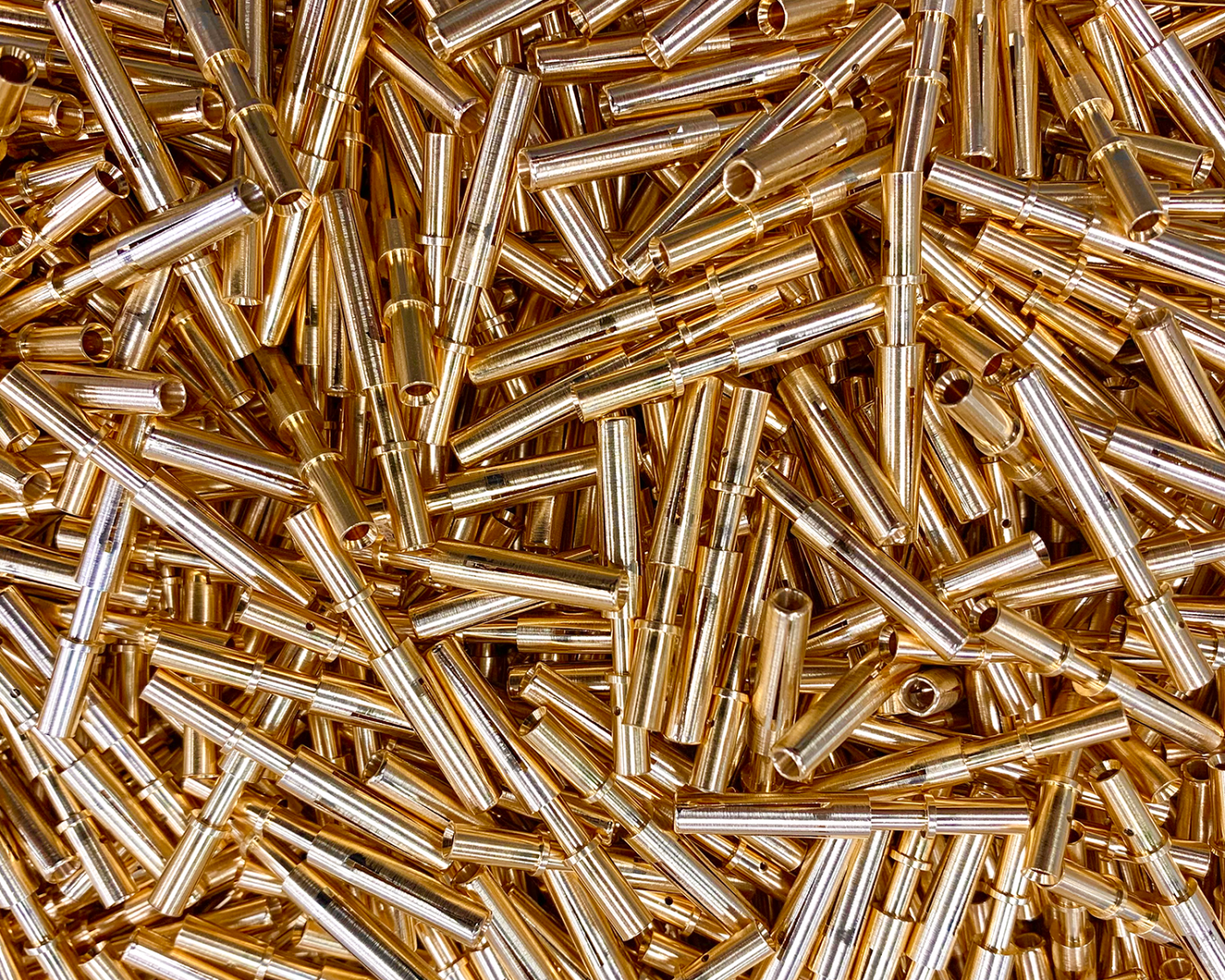

    Size 11 contacts
    Rated current 23amp, max current 41amp.
    The heart of the system.

    Size 11 contacts
    Rated current 23amp, max current 41amp.
    The heart of the system.


  • It's not a matter of vanity,
    each design has its purpose

    It's not a matter of vanity,
    each design has its purpose

    Our locking rings
    Heavy-duty, rubber coated or finger-grip

    Our locking rings
    Heavy-duty, rubber coated or finger-grip

  • Metric cable glands

    Metric cable glands

    Metric cable glands

    for the multiway connectors

    for the multiway connectors

    Metric thread cable glands allow more versatility compared to PG or other thread types. Our 4 way grommet is used with a M40 cable gland, while the 6-way and the 8-way are M50.

  • Metric cable glands

    Metric cable glands

    Metric cable glands

    Dimensions

    Dimensions

    V (thread size)ØS (clamping range)KZL
    M 40 Q15 - 23 mm46 mm10 mm52 mm
    M 40 P19 - 28 mm46 mm10 mm52 mm
    M 40 R22 - 32 mm46 mm10 mm52 mm
    M 5024 - 38.5 mm68 mm13.5 mm63 mm

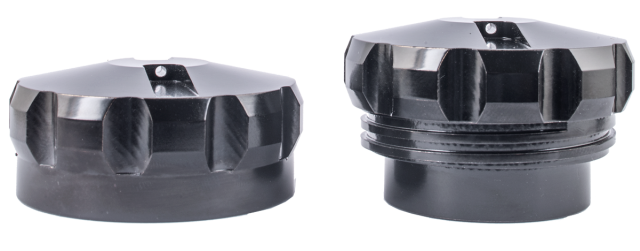

  • IP67 protective caps

    IP67 protective caps

    Waterproof your connectors

    Waterproof your connectors

    Safety is improved as contacts are protected against dust and water, even when the connectors are not mated.

    IP67 protective caps
